YS-350 High Efficiency In-Iine PCBA Single - Side Brush Machine for PCB/PCBA Assembly Line

Place of Origin : Guangdong, China

Brand Name : YUSH

MOQ : 1 set

Price : $10,000 / set

Weight : 300 KG

Voltage : 380 V

Maximum PCBA size : 350mm(L) x 350mm(W)

External dimensions : L1880*W870*H980±2mm

Coating Roller Size : 100mm

Disc brush size : 350mm

Spindle speed : 0-500 rpm (adjustable)

Track width adjustment : 50-350mm

Track speed : 0.05~2.0m/min

Track altitude : 900mm±50mm

Brush material : soft black brush, anti-static brush

Brush lifting height : 0~50mm

Liquid storage volume : ≤ 30L

Transmission speed : 0.1-1.8m/min

ESD static level : less than 100V

Contact Now

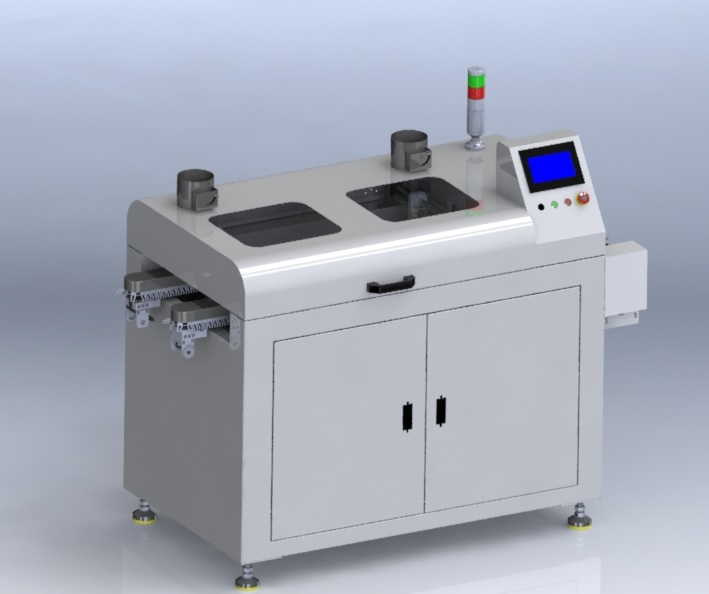

YS-350 High Efficiency In-Line PCBA Single-Side Brush Machine
Advanced automated cleaning solution for PCB/PCBA assembly lines, designed for efficient removal of contaminants while maintaining ESD protection standards.
Equipment Overview
YS-350 High Efficiency In-Iine PCBA Single - Side Brush Machine for PCB/PCBA Assembly Line YS-350 High Efficiency In-Iine PCBA Single - Side Brush Machine for PCB/PCBA Assembly Line
Cleaning Process
YS-350 High Efficiency In-Iine PCBA Single - Side Brush Machine for PCB/PCBA Assembly Line

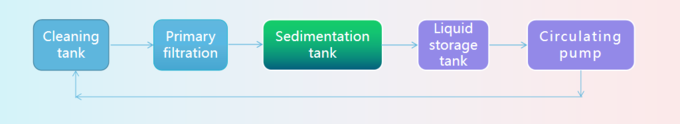

Cleaning Liquid Circulation System
Automatic circulation filtration system with continuous replenishment capability
YS-350 High Efficiency In-Iine PCBA Single - Side Brush Machine for PCB/PCBA Assembly Line

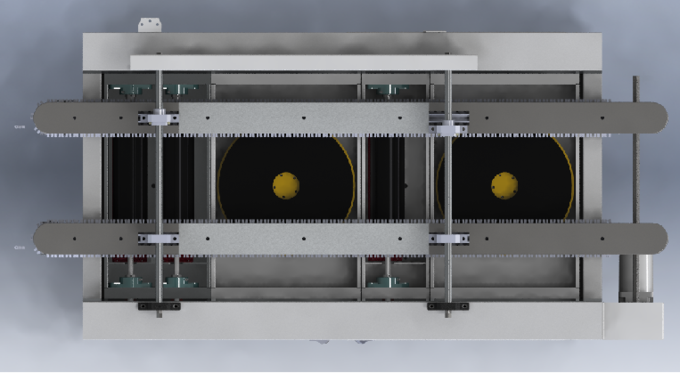

Rail Conveying Mechanism
  • Track width adjustment: Manual wheel adjustment
  • Speed range: 0.05~2.0 m/min (stepless transmission)
  • Track adjustment width: Maximum 50-350mm
  • Orbit height: 900mm ±50mm
YS-350 High Efficiency In-Iine PCBA Single - Side Brush Machine for PCB/PCBA Assembly Line
Brush Cleaning System
  • Brush material: Soft black brush, anti-static brush
  • Spindle speed: 0~500 RPM/MIN (stepless speed regulation)
  • Front end: 2 shaft brush roller φ90*350L + disc φ350mm
  • Back end: 1 shaft brush roller φ90*350L + disc φ350mm
YS-350 High Efficiency In-Iine PCBA Single - Side Brush Machine for PCB/PCBA Assembly Line
Brush Lift and Drop Mechanism
  • Lifting on same platform: Front and rear areas adjusted separately via manual wheel
  • Synchronization: Left and right ends connected synchronously by chain
  • Lifting height: 0~50mm
YS-350 High Efficiency In-Iine PCBA Single - Side Brush Machine for PCB/PCBA Assembly Line
Automatic Liquid Level Replenishment
  • Automatic replenishment: Cleaning liquid replenished according to settings
  • Automatic cycle use: Timed solvent updates with cleaning tank liquid returning to storage tank
  • Reduced solvent consumption through efficient recycling
YS-350 High Efficiency In-Iine PCBA Single - Side Brush Machine for PCB/PCBA Assembly Line
Key Equipment Characteristics
  • Automatic cleaning mode: Chain claw track transmission for smooth, efficient operation
  • Full process visibility: Visual window for observing entire cleaning process
  • Advanced scrubbing design: Combination of rolling brush and disc brush, both detachable
  • Comprehensive cleaning system: Effective removal of rosin, tin beads, flux, and solder paste residues
  • Durable construction: Cold plate powder coating with stainless steel washing system
  • Built-in filtration: Solvent recycling capability reduces consumption
  • ESD protection: Less than 100V, compliant with ESD S20.20-2014 standards
  • Cost-effective operation: Lower investment with localized service support
Equipment Working Areas
Cleaning Area
  • Two groups of cleaning with recycling storage tank
  • Liquid storage tank volume: ≤ 30L
  • Liquid level protection: Low and over limit monitoring
  • Pre-cleaning water pump: 1 unit
Scrubbing Area
  • Two scrubbing areas with 360-degree disc scrubbing
  • Adjustable brushing speeds for different products
  • Four-stage cleaning: Roller brush, disc dry brush, roller brush, disc dry brush
  • All brushes: Pig black hair, anti-static
Drying Zone
Cooling fan at exit for effective PCBA drying
Application Scope
YS-350 cleaning machine is an energy-saving, environmentally friendly integrated brush machine for batch cleaning operations with automatic online cleaning and air drying capabilities.
  • Ideal for coating products and high-end precision applications
  • Suitable for aviation, aerospace electronics, medical, automotive, and new energy sectors
  • Effective cleaning of PCBA welding surface residues including rosin flux, water-soluble flux, and no-clean flux/solder paste
  • Cleaning of poorly printed solder paste and red glue on PCB boards
YS-350 High Efficiency In-Iine PCBA Single - Side Brush Machine for PCB/PCBA Assembly Line
Capacity Calculation
Transmission Speed 0.1-1.8 m/min adjustable (recommended: 0.4-1.5 m/min)
Calculation Basis 350mm × 100mm board at 1 m/min working speed
Output per Hour Approximately 600 PCS/H
Output figures are for reference only and subject to actual operating conditions
