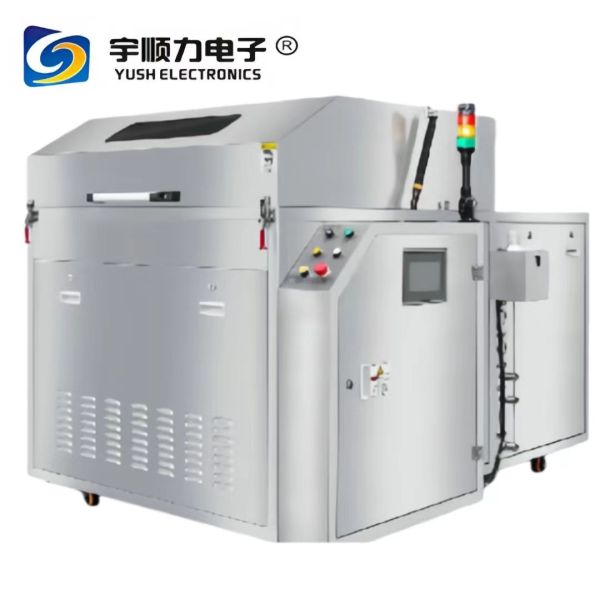

Easy One-Button Operation High Pressure Clean 1000mm X H 200mm Squeegee Cleaning Machine

Name: Easy OneButton Operation High Pressure Clean 1000mm X H 200mm Squeegee Cleaning Machine
Brand: YUSH
Price: 15 USD

Place of Origin : Jiangsu, China

Brand Name : YUSH

Model Number : YS-4200

MOQ : 1 set

Price : $15,800-16,800 / set

Weight : 500KG

Cleaning basket size : Φ1000mm x H 200mm

Spray unit : Upper/lower/front side,720°all-around spray

3-level filter system : 1mm /50um/20um filters

Dilution capacity : 80L

Rinse tank capacity : 80L

Clean spray pressure : 5~6 kg/cm2

Clean time : 5~15min

Rinse time : 1~3min

Dry time : 10~30min

Clean pump power : 2.2KW

Clean detergent power : 9KW

Hot air power : 9KW

Air blower power : 4.0KW

Machine size : L1380 x W2100 x H 1400 (mm)

Contact Now

Easy One-Button Operation High Pressure Clean 1000mm X H 200mm Squeegee Cleaning Machine

Key Features

Total SUS 304 structure, resistant to acid and alkali corrosion, firm and attractive design
1 meter diameter large cleaning basket capable of cleaning 20-40 fixtures simultaneously
Three-direction spray system (upper, lower, front) with rotating basket for comprehensive cleaning
High pressure cleaning up to 6kg/cm² for thorough fixture cleaning
PLC program control with touch-panel operation for easy parameter adjustment
One-button automated cycle: high pressure clean, rinse, and hot air drying
Clean liquid and water heating with temperature maintenance function
Closed-loop filtration system for detergent and rinse water recycling
Automatic solution and water fill/discharge functions
Ready-to-use squeegees after complete cleaning and drying cycle

Technical Specifications

Item	YS-4200
Cleaning Basket Size	Φ1000mm x H 200mm (special sizes available)
Spray Unit	Upper/lower/front side, 720° all-around spray
3-Level Filter System	1mm / 50um / 20um filters
Dilution Capacity	80L
Rinse Tank Capacity	80L
Clean Spray Pressure	5-6 kg/cm²
Clean Time	5-15 minutes
Rinse Time	1-3 minutes
Dry Time	10-30 minutes
Rinse Detergent Heat Temperature	Room temperature to 80°C
Rinse Water Heat Temperature	Room temperature to 80°C
Hot Air Heat Temperature	Room temperature to 90°C
Clean Pump Power	2.2KW
Clean Detergent Power	9KW
Hot Air Heat Power	9KW
Air Blower Power	4.0KW
Air Supply	0.5-0.7Mpa
Power Supply	3P, AC 380V, 50/60HZ, 33KW
Machine Size	L1380 x W2100 x H 1400 (mm)
Machine Weight	500KG

Manufacturer Profile

YUSH Electronic Technology Co., Ltd was founded in 2005 and is located in Jiangsu, China's manufacturing hub. The company specializes in professional PCB separator and depanelizer electronic equipment machinery. With advanced production equipment and an experienced development team (half with over 10 years industry experience), YUSH has been innovating since 2004 in PCB separation technology.

The company focuses on product quality, safety, and innovation, delivering high-performance, cost-effective solutions that improve production yields and enhance customer competitiveness. YUSH offers various PCB separation solutions including manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router types. Their quality products at reasonable prices have earned them a global customer base, establishing YUSH as one of China's leading PCB separator production bases.
