High Quality Mini Selective Soldering Machine for SMT Production Line

Place of Origin : Guangdong, China

Brand Name : YUSH

MOQ : 1 set

Price : $19,000-22,000 / set

Weight : 1050 kg

Power : 10 kW

Voltage : 220V/380V

PCB process side : ≥3

PCB weight : ≤5 kg

PCB thickness : 1-6 mm

PCB transfer speed : 0.2-10

Device dimensions : 1435(L)*1800(W)*1670(H) mm

PCB top clearance : 120 mm

PCB bottom clearance : 60 mm

Conveyor belt height : 900±20 mm

Adjustable conveyor range : 50-450 mm

Air intake pressure : 0.6

Nitrogen consumption : 1.5

Maximum power consumption : <12 kW

Contact Now

High Quality Mini Selective Soldering Machine for SMT Production Line
Key Features
  • Complete welding process in compact machine space with standard spraying, preheating, and welding units
  • Rotary track design enables PCB loading/unloading from the same side of the machine
  • Small footprint - significantly shorter than standard SUNFLOW system machines
  • Real-time welding process monitoring with comprehensive process recording
High Quality Mini Selective Soldering Machine for SMT Production Line
Technical Specifications
Parameter Category Parameter Name Specification
Body Parameters Device Dimensions 1435(L)*1800(W)*1670(H)
Equipment Weight (KG) 1050
PCB Top Clearance 120
PCB Bottom Clearance 60
PCB Process Side ≥3
Conveyor Belt Height Above Ground 900±20
PCB Transfer Speed 0.2-10
PCB Weight (KG) ≤5
PCB Thickness (including fixture) 1-6
Adjustable Range of Conveyor Belt 50-450
Conveyor Belt Width Adjustment Method Electric
PCB Transfer Direction Left to right
Air Intake Pressure 0.6
Nitrogen Supply Provided by customer
Nitrogen Inlet Pressure 0.6
Nitrogen Consumption 1.5
Required Nitrogen Purity >99.999
Voltage 380
Frequency 50/60
Maximum Power Consumption <12
Maximum Current <25
Machine Noise <65
Communication Interface SMEMA
Welding System Welding X-axis Maximum Travel 510
Maximum Travel of Welding Y Axis 450
Welding Z Axis Maximum Travel 60
Minimum Nozzle Outer Diameter 5.5
Nozzle Inner Diameter 2.5-10
Maximum Crest Height 5
Tin Furnace Capacity Approx.13kg(Sn63Pb)/ Approx.12kg(lead-free)
Maximum Soldering Temperature 330
Tin Furnace Heating Power 1.15
Preheating System Preheat Temperature Range <200
Heating Power 6
Heating Method Hot air
Spray System Spray X-axis Maximum Travel 510
Maximum Stroke of Spray Y Axis 450
Spray Height 60
Positioning Speed <200
Flux Tank Capacity 2
Standard Machine Configuration
  • Spray module
  • Preheating module
  • Welding module (standard machine with inner diameter 6mm nozzle)
  • Transmission system
Working Principle

After the pre-programmed program of the spray head controls the PCB board to move to the designated position, only the parts that need to be soldered are sprayed with flux. After spraying and preheating, the electromagnetic pump platform drives the electromagnetic pump to move to the required position according to the preset program for welding, and then completes the soldering process.

Fast and Convenient Programming System
High Quality Mini Selective Soldering Machine for SMT Production Line
Stable and High-Quality Welding Module
Features and Advantages
  • Stable wave crest formation
  • Easy nozzle removal and replacement
  • High quality nozzle (3-month service life)
  • Small footprint design
  • Energy efficient operation
  • Fast line change capability
High Quality Mini Selective Soldering Machine for SMT Production Line

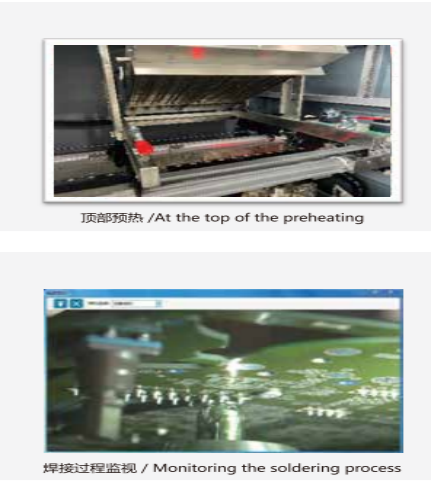

Using an electromagnetic pump instead of a mechanical pump provides stable wave peaks during operation, eliminates mechanical wear, and minimizes waste production. The welding module incorporates a high-precision motion system to ensure process accuracy, while specialized processes significantly reduce tin bridging phenomena. User experience is enhanced with welding monitoring cameras and automatic wave height detection.

High Quality Mini Selective Soldering Machine for SMT Production Line
Transmission System - Roller Conveyor Track
High Quality Mini Selective Soldering Machine for SMT Production Line

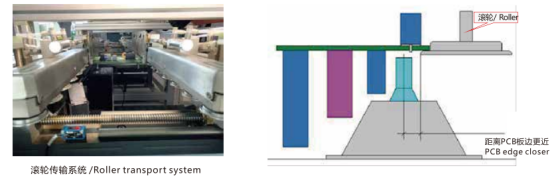

The transmission system utilizes roller conveying, which increases welding space and facilitates soldering of components located close to the board edges.

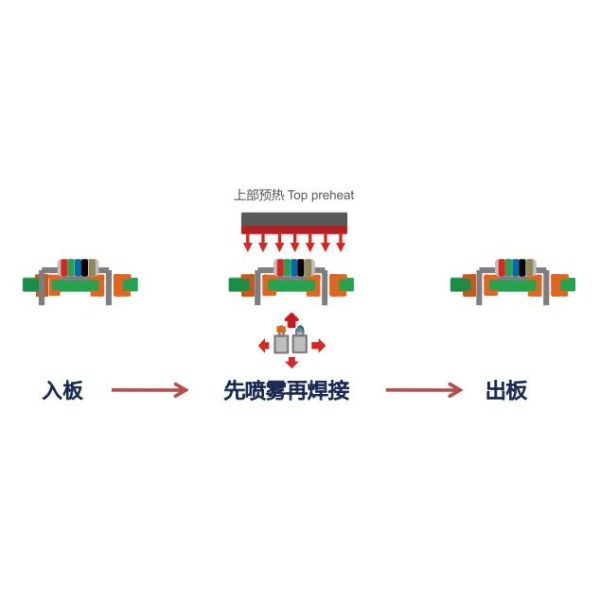

Selective Soldering Process
  1. Transfer PCB board to designated location
  2. Selective spraying, preheating and soldering of PCB according to set procedure
  3. PCB outgoing process completion
High Quality Mini Selective Soldering Machine for SMT Production Line
High Precision Spray Module

The standard machine features precision drop nozzles imported from Germany with 130μm diameter, ensuring uniform flux application on required welding areas. Minimum spray area is 3mm, saving at least 90% flux compared to traditional spray methods. For applications requiring less precision, alternative spray nozzles are available for faster spray processes.

All module movements are driven by servo motors and ball screws, ensuring smooth and stable operation with repeatability reaching 0.05mm.

Basic Structure Module
High Quality Mini Selective Soldering Machine for SMT Production Line
