0.5Mpa~ 0.7Mpa Pneumatic Stencil Cleaning Machine for Solder Paste Stencil Glue Cooper/Rubber Stencil

Name: 05Mpa 07Mpa Pneumatic Stencil Cleaning Machine for Solder Paste Stencil Glue CooperRubber Stencil
Brand: YUSH
Price: 10 USD

Quality 0.5Mpa~ 0.7Mpa Pneumatic Stencil Cleaning Machine for Solder Paste Stencil Glue Cooper/Rubber Stencil for sale

Place of Origin : Guangdong, China

Brand Name : YUSH

MOQ : 1 set

Price : $10,000 / set

Weight : 230 kg

Power : 3 kW

Voltage : 220V

Stencil size : 750mm × 750mm × 40mm

Liquid capacity : 40L

Wash method : 360° double side rotary nozzles

Dry method : 360° double side rotary nozzles

Clean time : 3-5 min

Dry time : 3-5 min

Air pressure : 0.5Mpa ~ 0.7Mpa

Air consumption : 400-600L/min

Vent size : Φ120xH30mm

Machine size : 800mm × 950mm × 1650mm

Material : SUS 304

Filter system : 1mm, 20um, 1um

Contact Now

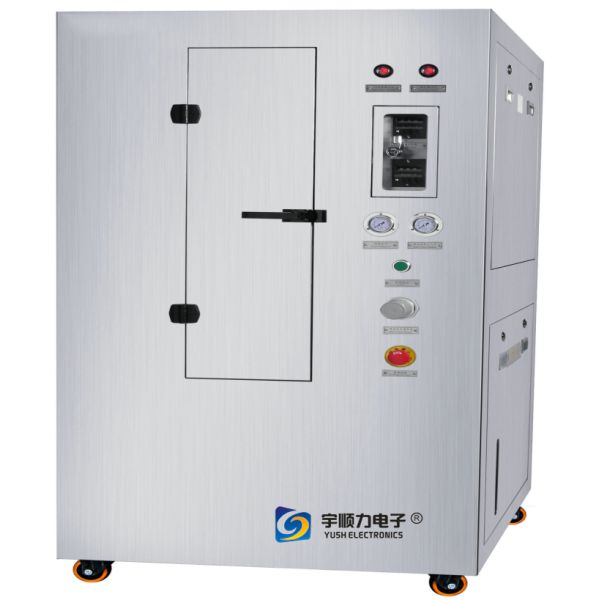

0.5Mpa~0.7Mpa Pneumatic Stencil Cleaning Machine

Professional pneumatic stencil cleaning machine designed for solder paste stencils, glue cooper, and rubber stencils. Model: YS-750

YS-750 Main Features

SUS 304 structure with acid and alkali corrosion resistance, 10-year lifespan
All liquid pipes are SUS304 - no plastic pipes
Compressed air driven operation - no electric power required, 100% safe with solvents
One-button easy operation with automatic clean and dry cycles
360° rotating spray rods on both sides for superior cleaning quality and stable stencil tension
Liquid recycling system for low consumption
Inner-lock safety door and safety valve - machine stops immediately when opened
3-level precise liquid filtering system for repeated liquid use
Superior pneumatic components from world-renowned manufacturers
Modular design for easy maintenance

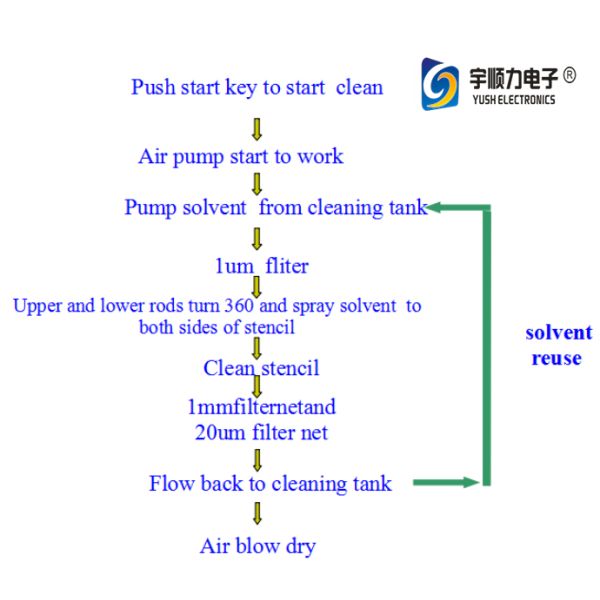

YS-750 Flow Chart

YS-750 Technical Specifications

S/N	ITEM	SPEC	REMARKS
1	Stencil size	750mm(L) × 750mm(W) × 40mm(H) max
2	Liquid tank capacity	40L max
3	Wash method	360° double side rotary nozzles liquid spray wash
4	Dry methods	360° double side rotary nozzles spray liquid air blow dry
5	Clean time	3-5 min (solder paste stencil)
6	Dry time	3-5 min (solder paste stencil)
7	Filter systems	1mm SUS 304 filter net, 20um filter bag, 1um filter elements	Liquid recirculation use
8	Air supply	0.5Mpa~0.7Mpa
9	Air consumption	400-600L/min
10	Net weight	230Kg
11	Vent size	Φ120xH30mm
12	Machine size	800mm(L)×950mm(W)×1650mm(H)

Cleaning Results Comparison

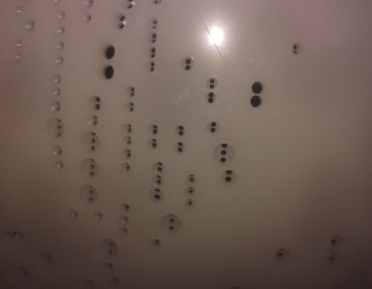

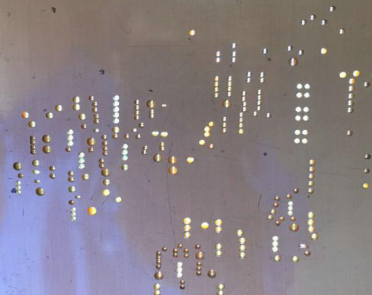

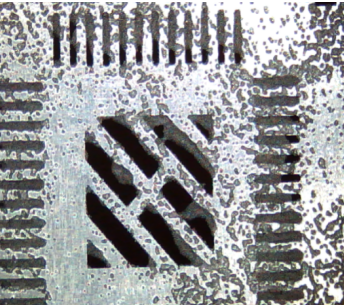

Before Cleaning

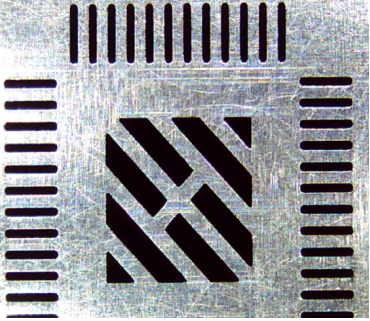

After Cleaning
