YS-W2 Stable Printing Quality High Speed and High Precision Wave Soldering Machine for PCB Assembly Line

Place of Origin : Jiangsu, China

Brand Name : YUSH

MOQ : 1 set

Price : $9,800-12,800 / set

Weight : 1500 kg

Machine Type : Solder Paste Printer

Dimension : 2900X1160X1500 mm

Power Supply : 3P5W,380/220V 50Hz

Startup Power : 16kw

Operation Power : 7kw

Control System : Touch Screen +PLC

Transmission Method : Step motor

Spray Pressure : 0.25Mpa--0.4Mpa

Exhaust Diameter : φ200mm

Exhaust Capacity : 25m3/min

Preheating Temp : (Room Temperature)-250℃

Conveyor Speed : 0-2000(mm/min)

Conveyor Height : 750+/-20(mm)

Solder Pot Temp : 300°C

Contact Now

YS-W2 Stable Printing Quality High Speed and High Precision Wave Soldering Machine
Designed for PCB assembly lines, the YS-W2 wave soldering machine delivers exceptional stability, speed, and precision in printing quality.
Key Advantages
  • Simple Operation: Advanced international concepts combined with intuitive Oriental-designed operating system for easy learning and maintenance
  • Expert Engineering: Incorporates imported reflow oven design concepts with top-brand components
  • Reliable Performance: Imported hardware configuration ensures low failure rates and over a decade of service life
  • Safety Compliant: Meets international design standards with highest security level ratings
  • Stable Operation: Mature software, premium hardware, and advanced production processes guarantee equipment stability
Temperature Control & Spray System
YS-W2 Stable Printing Quality High Speed and High Precision Wave Soldering Machine for PCB Assembly Line YS-W2 Stable Printing Quality High Speed and High Precision Wave Soldering Machine for PCB Assembly Line
Chamber & High Temperature Components
YS-W2 Stable Printing Quality High Speed and High Precision Wave Soldering Machine for PCB Assembly Line YS-W2 Stable Printing Quality High Speed and High Precision Wave Soldering Machine for PCB Assembly Line
Solder Pot System
YS-W2 Stable Printing Quality High Speed and High Precision Wave Soldering Machine for PCB Assembly Line YS-W2 Stable Printing Quality High Speed and High Precision Wave Soldering Machine for PCB Assembly Line
Wave Soldering Machine Specifications
Model YS-W4 YS-W3 YS-W2
Dimension (mm) 4200×1250×1500 3600×1250×1500 2900×1160×1500
Weight (kg) Approx. 1500kg Approx. 1200kg Approx. 790kg
Power Supply 3P5W, 380/220V 50Hz 3P5W, 380/220V 50Hz 3P5W, 380/220V 50Hz
Startup Power 32kw 24kw 16kw
Operation Power 12kw 9kw 7kw
Control System Touch Screen + PLC
Spray System Step motor transmission, 0.25-0.4Mpa pressure, 10-100ml/min flux flow
Exhaust System φ200mm diameter, 25m³/min capacity
Preheating System 4 zones, 1800mm length 3 zones, 1600mm length 1 zone, 900mm length
Preheating Temperature Room Temperature - 250℃
Warm-up Time Approx. 15min (setting 150°C)
Conveyor System 60-350mm PCB width, 0-2000mm/min speed, 750±20mm height, double hook claw finger
Solder Pot Capacity Lead-free 350kg Lead-free 300kg Lead-free 250kg
Solder Pot Material Full Titanium (Standard FT)

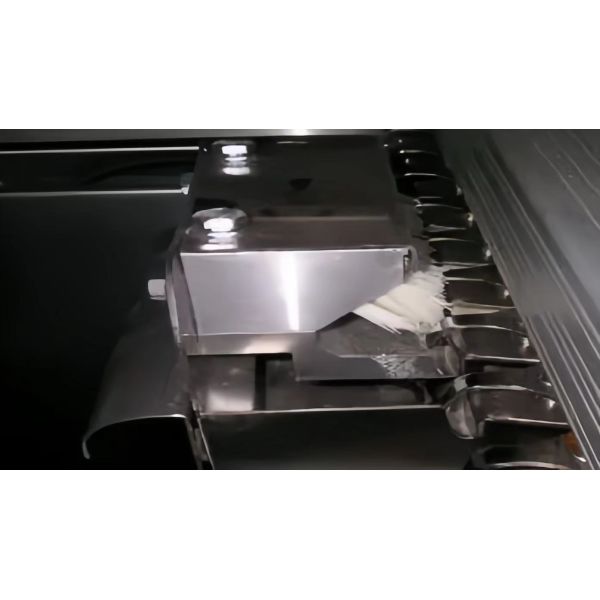

Other Features Brush finger cleaning system
About YUSH Electronic Technology
Founded in 2005 and located in Jiangsu, China, YUSH Electronic Technology specializes in professional PCB separator and depaneling equipment. With advanced production facilities and an experienced team (half with over 10 years in electronic equipment), the company focuses on product quality, safety, and innovation. Since 2004, YUSH has developed various PCB separation solutions including manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router systems, serving customers worldwide with high-quality, cost-effective products.
