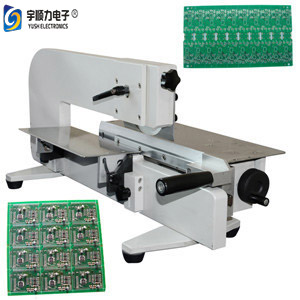

Professional Manual PCB Depanelizer & V-Groove PCB Separator for SMT Assembly Line

Product Categories

YUSH Electronic Technology Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Professional Manual PCB Depanelizer amp VGroove PCB Separator for SMT Assembly Line
Brand: YUSH
Price: 3 USD

Place of Origin : Guangdong, China

Brand Name : YUSH

MOQ : 1 set

Price : $3,800 / set

Weight : 50kg

Voltage : 220V

Maximum Cutting Length : 330mm

Cutting Speed : 0-100mm/s

Cutting Thickness : 0.8-3.5mm

Depaneling Mode : Manual

Optional Configuration : Circular blade and linear blade * 1set

Core Components : Motor

Blade Type : Circular and linear

Blade Clearance : Adjustable

Blade Regrinding : Supported

Platform Material : Stainless steel

Speed Adjustment : Rotary knob

Stress Reduction : Yes

Component Compatibility : Boards with projected components

Contact Now

Professional Manual PCB Depanelizer & V-Groove PCB Separator for SMT Assembly Line

Manual PCB Depanelizer Machine / V-Groove PCB Separator Machine

Key Features

Linear knife manually cutting against upper circular knife for stress reduction
Separates pre-scored PCB assembly without stress on PCB or components
Separating speed adjustable via rotary knob control
Handles intermittent scoring or cut-outs effectively
Precisely cuts boards with projected components
Large stainless steel platform on both sides prevents board wobble with adjustable table height and angle
Adjustable clearance between circular and linear blades accommodates different groove depths and compensates for blade wear

PCB Depaneling of PCB Boards YSV-2M

Advanced Features

Utilizes upper circular blade and bottom linear blade configuration
Cuts pre-scored V-groove PCB without stress on PCB or components
Adjustable clearance between circular and linear blades for different groove depths and blade wear compensation
Blades can be re-ground for extended service life
