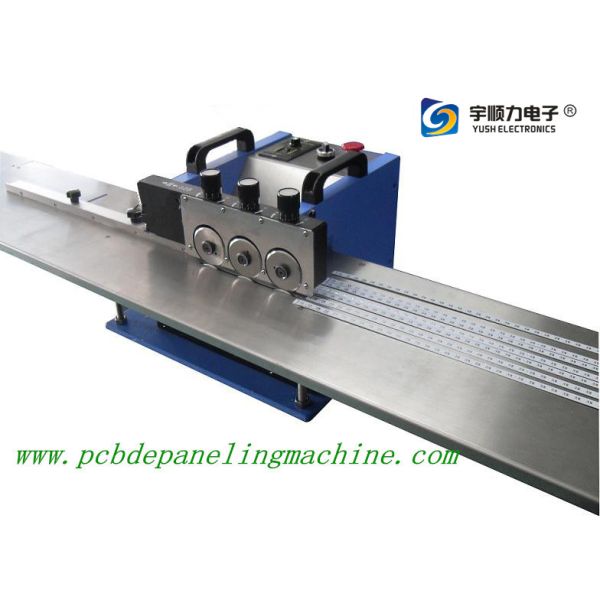

LED Strip Production Line Aluminum Base Plate Splitting Machine - Professional PCB Substrate Precision Cutting Equipment

Place of Origin : Guangdong, China

Brand Name : YUSH

MOQ : 1 set

Price : $1,500 / set

Weight : 98 Kg

Power : 10 kW

Voltage : 110V / 220V

Model : YSVC-3S

Cutting Length : Max 1.5 M

Platform Length : 1.5 M / 2.4 M

Machine Size : 420mm X 280mm X 400mm

Minimize Speed : 0-400mm/s

Minimize Thickness : 1.0-3.5mm

Blade Jitter : Less than 0.02mm

Core Components : PLC, Gearbox, Motor, Pump

Cutting Method : Six blades (three groups)

Blade Material : High speed steel (Swedish)

Cutting Stages : Three stages (40%, 40%, 20%)

Stress Reduction : More than 80%

Contact Now

LED Strip Production Line Aluminum Base Plate Splitting Machine
Professional PCB Substrate Precision Cutting Equipment with advanced multi-stage cutting technology
Revolutionary Multi-Stage Cutting Technology
Our unique cutting system employs six blades arranged in three groups (A, B, C) that progressively cut through the circuit board in three stages. This innovative approach reduces cutting stress by over 80% compared to traditional single-cut methods, ensuring perfectly smooth edges and surfaces without warping or deformation.
Key Advantages
  • Stress-Reduced Cutting: Three-stage progressive cutting (40%-40%-20%) minimizes stress and prevents aluminum plate deformation
  • Enhanced V-CUT Positioning: Multiple cutting process ensures precise V-CUT groove positioning without board jumping
  • Premium Blade Durability: High-speed steel blades imported from Sweden provide exceptional longevity - up to one year or more when cutting aluminum boards
  • Laser-Calibrated Precision: All cutting blades calibrated with excitation double-frequency laser interference measurement for accuracy within 0.02mm
LED Strip Production Line Aluminum Base Plate Splitting Machine - Professional PCB Substrate Precision Cutting Equipment
Advanced Features
  • Vertically adjustable guide to accommodate different PCB thicknesses
  • Precise circular blade clearance adjustment via knob control
  • Reusable upper and lower circular blades after regrinding
  • Customizable circular blade shapes and sizes according to customer specifications
Technical Specifications
Model YSVC-3S
Cutting Length Max 1.5 M LED Light Board
Voltage 110V / 220V
Certificates CE Mark
Weight 98 Kg
Platform Length 1.5 M / 2.4 M
Cutting Board Compatibility V-cut PCB board, FR4 board, LED Aluminum board
Machine Size 420mm × 280mm × 400mm
Speed Range 0-400mm/s
Thickness Range 1.0-3.5mm
LED Strip Production Line Aluminum Base Plate Splitting Machine - Professional PCB Substrate Precision Cutting Equipment
