Precise V-Cut Cutting 0.50~3.8mm Thickness 220V 110V PCBA FR4 with Smooth and Flawless Edges, No Need for Additional Grinding.

Place of Origin : Guangdong, China

Brand Name : YUSH

Model Number : YSVC-2

MOQ : 1 set

Price : $4,000 / set

Weight : 159 kg

Power : 10 kW

Voltage : 220V / 110V

Thickness range : 0.50~3.8mm

Maximum length : 300mm / 400mm

Package size : 720mm x 300mm x 440mm

Working air pressure : 0.4-0.6Mpa

Model : YSVC-2M

Longest minimize : 330mm

Machine size : 620mm x 230mm x 400mm

Minimize thickness : 0.3-3.5mm

Cutting rate : 1 separation per second

Blade warranty : 200000 cuts

Air compressor requirement : 4-5KG

Core components : PLC, Gearbox, Motor, Pump

Contact Now

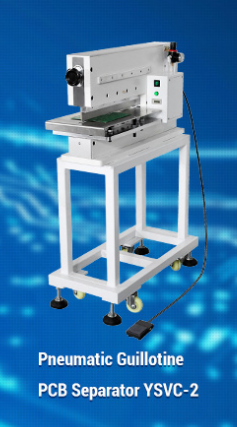

Precise V-Cut Cutting Machine for PCBA FR4 Boards
Professional PCB depanelizing machine designed for 0.50~3.8mm thickness boards with smooth, flawless edges that eliminate the need for additional grinding.
Technical Specifications
Maximum board length300mm / 400mm
Package Size720mm(L) × 300mm(W) × 440mm(H)
Thickness Range0.50~3.5mm
Power Supply220VAC / 110V
Working Air Pressure0.4-0.6Mpa
Weight159 kg
Application ScopeAll V-CUT SMD PCB boards
Model YSVC-2M Specifications
Maximum Cut Length330mm
Machine Size620mm × 230mm × 400mm
Cut Thickness Range0.3-3.5mm
Machine Weight159kg
Key Features & Benefits
  • High-speed operation with 1 separation per second, controlled by pedal pneumatic switch
  • Passive start cutting knife group ensures safe handling and precise cutting line positioning
  • Minimal cutting stress prevents cracking phenomena
  • Non-roller cutting system eliminates dust, motor drive, and carbon pollution
  • Non-friction cutting method leaves no residual metal
  • Blade warranty: 200,000 cuts with no electrical power loss or replacement needed
  • Proprietary cutting tool design for high efficiency without imports
  • Operates with 4-5KG air compressor, no specific cutting site required
  • Easy maintenance through oil wiping to prevent rust
Competitive Advantages
  • Original manufacturer of YSVC-2 PCB depanelizer with competitive pricing
  • Daily technical support services
  • Rapid complaint resolution with 30-minute response time
  • Depanel experts providing professional PCB separation solutions
Precise V-Cut Cutting 0.50~3.8mm Thickness 220V 110V PCBA FR4 with Smooth and Flawless Edges, No Need for Additional Grinding.
PCB lead cutter V groove cutting machine V cut machine
