6inch Dicing Saw for Semiconductor Industry Dicing Machine Higher Movement Accuracy YS-6H

Place of Origin : Guangdong, China

Brand Name : YUSH

MOQ : 1 set

Price : $50,000-100,000 / set

Weight : 500 kg

Power : 10 kW

Voltage : 220V, 110V

Size : 580*910*1650 mm

Exhaust rate : 1.5m³/min

Spindle power : DC, 1.5 at 50000/min

Dicing depth : ≤4mm or custom

Core components : PLC

Movement accuracy : Higher

Alignment accuracy : Double lens

Operating temperature : 20~25ºC ±1ºC

Humidity range : 40%~60%

Compressed air : Dew point -15ºC, 0.1ppm oil

Water temperature : Room ±1ºC

Cooling water : Room ±1ºC

Contact Now

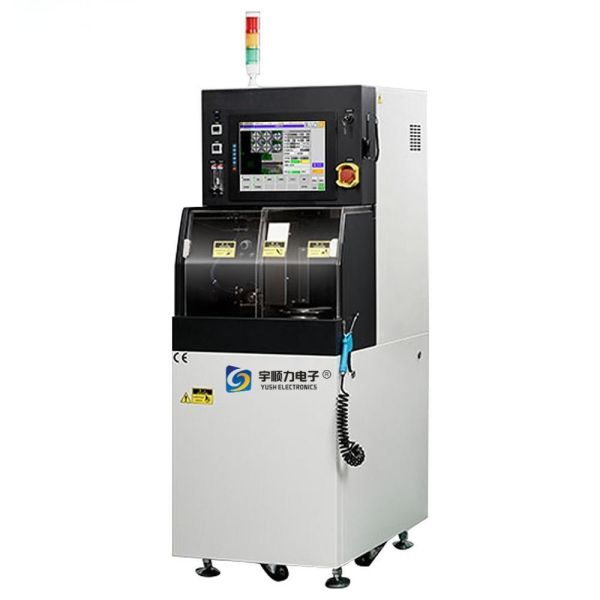

6-Inch Dicing Saw for Semiconductor Industry
YS-6H Dicing Machine with Higher Movement Accuracy
YS-6H Model
6inch Dicing Saw for Semiconductor Industry Dicing Machine Higher Movement Accuracy YS-6H
YSL6H 6-inch Dicing Saw for Semiconductor Industry
YS-6L Model
6inch Dicing Saw for Semiconductor Industry Dicing Machine Higher Movement Accuracy YS-6H
YS-6L 6-inch Dicing Saw for Semiconductor Industry
YS-6M Model
6inch Dicing Saw for Semiconductor Industry Dicing Machine Higher Movement Accuracy YS-6H
YSL6M 6-inch Dicing Saw for Semiconductor Industry
This precision scribing machine is equipped with imported high-power DC spindle; θ-axis imported DD motor drive; imported high-precision lead screw and guide rail for higher movement accuracy; double lens alignment for enhanced accuracy; strengthened software functions with significantly improved automation.

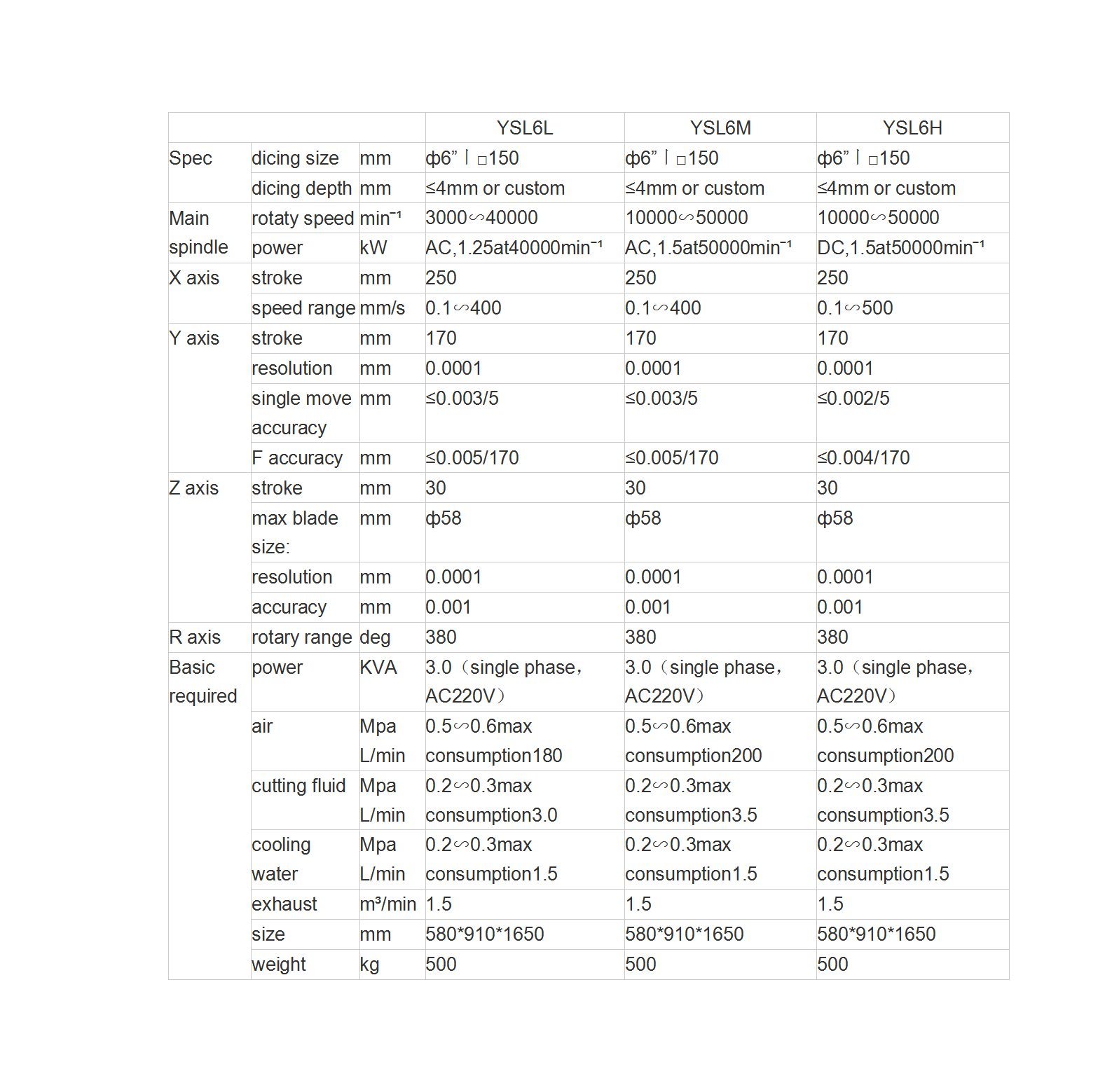

Specifications
6inch Dicing Saw for Semiconductor Industry Dicing Machine Higher Movement Accuracy YS-6H
Detailed Information
6inch Dicing Saw for Semiconductor Industry Dicing Machine Higher Movement Accuracy YS-6H
Key Features
  • Standard non-contact height measurement function (NCS)
  • Standard tool mark detection function
  • Optional blade breakage detection function (BBD)
  • Optional workpiece shape detection function
  • Optional data scanning input function
Operating Conditions
  • Environment: 20~25ºC (fluctuation within ±1ºC); humidity 40%~60%, constant without condensation
  • Compressed air: clean with atmospheric pressure dew point below -15ºC, residual oil content 0.1ppm, filtration above 0.01um/99.5
  • Water temperature: cutting water at room temperature 2ºC (±1ºC), cooling water same as room temperature (±1ºC)
  • Location: avoid gravitational impact and external vibration; not near blowers, vents, high-temperature devices, or oil-generating equipment
  • Installation: waterproof floor with drainage treatment
  • Operation: strictly follow product instruction manual
Application Areas
Diodes, triodes, LED packaging, NTC, MEMS, IC, photovoltaics, medical devices, scintillation crystals

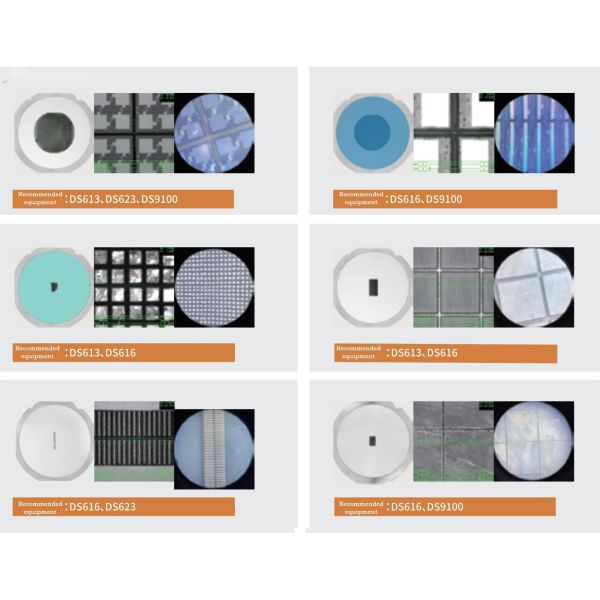

Precision Cutting Materials
Silicon wafer, PCB board, EMC, ceramics, glass, quartz, gallium arsenide, lithium niobate, sapphire, crystal
Auto Focus Function
Through visual algorithm coordinated with motion control, the lens automatically raises and lowers to quickly obtain clear position of workpiece image.
Accessories & Consumables
6inch Dicing Saw for Semiconductor Industry Dicing Machine Higher Movement Accuracy YS-6H
Application Field
6inch Dicing Saw for Semiconductor Industry Dicing Machine Higher Movement Accuracy YS-6H
Packaging & Shipping
6inch Dicing Saw for Semiconductor Industry Dicing Machine Higher Movement Accuracy YS-6H
Our Services
6inch Dicing Saw for Semiconductor Industry Dicing Machine Higher Movement Accuracy YS-6H
Company Information
YUSH Electronic Technology Co., Ltd is a manufacturer and trader specialized in the research, development and production of PCB depaneling, Hot bar welding machine and Touch screen film sticking machine. We are located in Dongguan City, Guangdong Province, China with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in various markets worldwide. Contact us for custom orders and business relationships.
Frequently Asked Questions
Who are we?
Based in Jiangsu, China since 2014. We serve Eastern Europe (20%), North America (20%), South America (15%), Southern Europe (10%), Northern Europe (10%), Western Europe (10%), South Asia (10%), and Mid East (5%). Our office employs 301-500 people.
How can we guarantee quality?
Pre-production samples before mass production; final inspection before shipment.
What can you buy from us?
PCB depaneling, PCB separator, PCB cutting machine, PCB depaneler, V-cut machine.
Why should you buy from us?
YUSH Electronic Technology Co., Ltd. was founded in 2004, located in Jiangsu manufacturing city. We are professional PCB separator/depanelizer electronic equipment machinery with advanced production and processing equipment.
What services can we provide?
Delivery Terms: FOB, CIF, EXW, DDP, DDU, Express Delivery, DAF
Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow
Languages: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, Korean, Hindi
