YSVC-650 High Efficiency Offline PCB Router Machine Suitable for SMT Assembly Line

Name: YSVC650 High Efficiency Offline PCB Router Machine Suitable for SMT Assembly Line
Brand: YUSH
Price: 30 USD

Quality YSVC-650 High Efficiency Offline PCB Router Machine Suitable for SMT Assembly Line for sale

Place of Origin : Guangdong, China

Brand Name : YUSH

MOQ : 1 set

Price : $30,000 / set

Weight : 800 kg

Power : 10 kW

Voltage : 220V/380V

Router Bit Diameter : 0.8~3.0mm

Spindle Motor Speed : 60,000 rpm

Pneumatic Pressure : 0.5 MPa

Core Components : PLC, Motor

Cutting Path Proximity : 0.5mm

Alignment Compensation : CCD Camera

Depth Adjustment Stages : 5-stage

X-Y Robot Speed : High-speed

Z-axis Motor : Servo Motor

Image Processing : Windows-based

Programming Accuracy : Microns

Spindle Option : NAKANISHI/KAVO

Contact Now

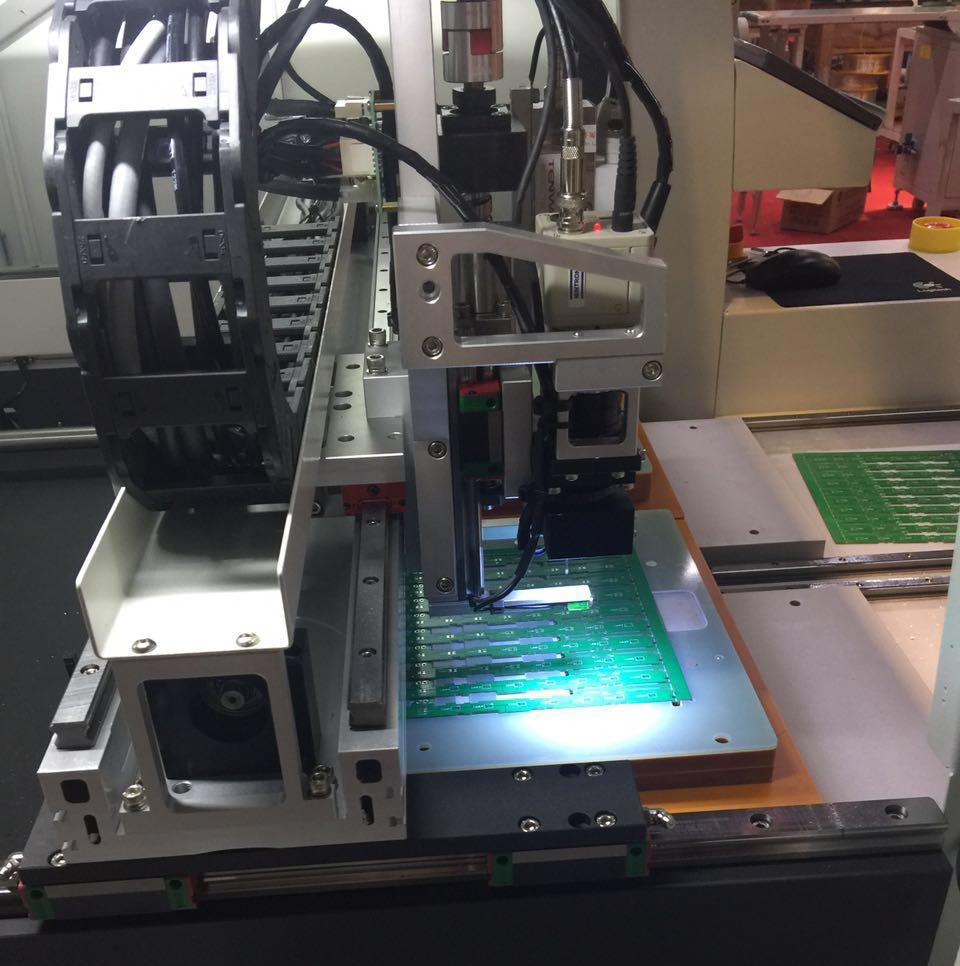

YSVC-650 High Efficiency Offline PCB Router Machine

Stand-alone PCB router with CCD camera and advanced image-processing software, ideal for SMT assembly line applications.

Low-Stress Depanelization Solution

High-speed router bit precisely cuts densely populated PCBs without stressing the boards. Cutting paths can be set as close as 0.5mm to components.

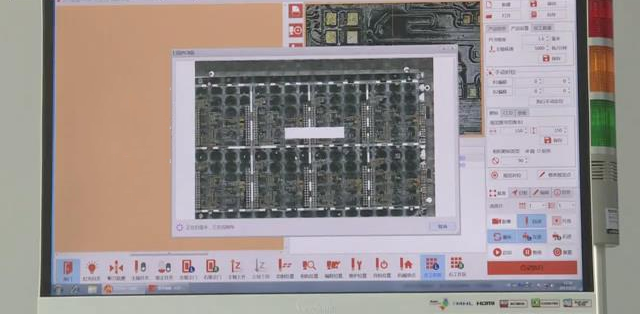

Advanced Image-Processing Software

Point-and-click Windows-based operation simplifies programming of cutting paths using CCD camera capture, reducing setup time and complexity.

Automatic Alignment Compensation

CCD camera reads fiducial marks on PCBs and compensates for variance in cutting path positions.

Extended Router Bit Life

Automatic 5-stage depth adjustment extends bit life and reduces replacement time and costs.

High-Speed Motion System

X-Y robot and Z-axis servo motor reduce tact time and improve productivity.

Compact Footprint

Small footprint design optimizes floor space utilization.

YSVC-650 High Efficiency Offline PCB Router Machine Suitable for SMT Assembly Line

Advanced Router Programming Technology

Quick and easy learning curve for operators
Accurate software programming to micron precision
Ideal for programming arcs and circles
Save thousands of programs as Windows files
Transfer programs to other routers via USB drive
Real-time display of cutting pattern, sequence and X/Y coordinates

Key Features

YSVC-650 series is a visual alignment automatic PCB router machine equipped with high-speed CCD vision correction device, designed for precision and high-capacity PCB boards routing operations. Suitable for mobile phones, GPS, PDA, MODULE and other small PCB depaneling applications. Features NAKANISHI Japanese precision spindle (optional Germany KAVO spindle available) for stress-free cutting with smooth board edges and high precision.

Order Method for Automated Cutting

Cutting process integrated with production model and quantity according to PMC planning
Prevents advanced production and unclear capacity issues
Avoids modifications in non-production processes
Enables separation of operators from machines

QR Code Automatic Program Retrieval

Direct program transfer via QR code scanning - convenient, simple, error-free
Intelligent product switching capability

CCD Scanning Function

Industry-leading PCBA full-board scanning capability
Reduces programming time with real-time cutting path display
Easy modification and simple operation

Industrial 4.0 - MES System Integration

Automatic server data retrieval
Upload machine data and production statistics
Real-time equipment status monitoring
