YSVC-650 Professional High Precision Offline PCB Router Machine
YSVC-650 Circuit Board Offline PCB Router Machine is designed for SMT assembly line circuit board processing, offering professional-grade precision and reliability.
About YUSH Technology
YUSH Technology is a leading instrument brand specializing in PCB industry equipment research, development, and production. Our FPC ultraviolet laser cutting machines are widely recognized by customers for their superior performance and reliability.
Applications
The FPC UV laser cutting machine is designed for precision cutting of flexible circuit boards and organic coatings without requiring molds or protective plate fixation. Utilizing high-energy laser sources with precise beam control ensures optimal processing speed and exceptional machining results.
Key Features
- Proprietary control software with user-friendly interface, comprehensive functionality, and simple operation
- Capable of processing any graphics with different thicknesses and materials, complete hierarchical synchronization
- Optimized optical system design ensures high beam quality and reduced focused spot size for precision cutting
- High-performance UV laser with optimal wavelength, superior beam quality, and higher peak power characteristics
- Minimal thermal effect with no delamination, delivering precise, smooth cuts with steep sidewalls
- Vacuum sample fixation eliminates need for mold protection plates, enhancing processing efficiency
- Versatile substrate compatibility including silicon, ceramic, glass, and other materials
- Automatic correction, positioning, multi-plate cutting, thickness measurement and compensation functions
Technical Specifications
| Laser Source | Solid-state UV laser, 355nm wavelength |
| Laser Power | 10W |
| Maximum Processing Format | 610mm × 500mm (24" × 18") |
| XY Platform Maximum Speed | 50m/min |
| Positioning Accuracy | ±3μm |
| Repeatability | ±1μm |
| System Precision | ±20μm |
| Galvanometer Scanning Range | 50mm × 50mm |
| Cutting Thickness | <1mm |
| Power Requirements | AC220V 50Hz/2.2KW; Three-phase 380V 50Hz/5.5KW |
| Air Consumption | 516m³/h |
| Dimensions | 1818mm × 2317mm × 1550mm |
| Weight | 3500kg |
| Operating Temperature | 20℃ ±2℃ |
| Humidity | <60% RH non-condensing |
Control System

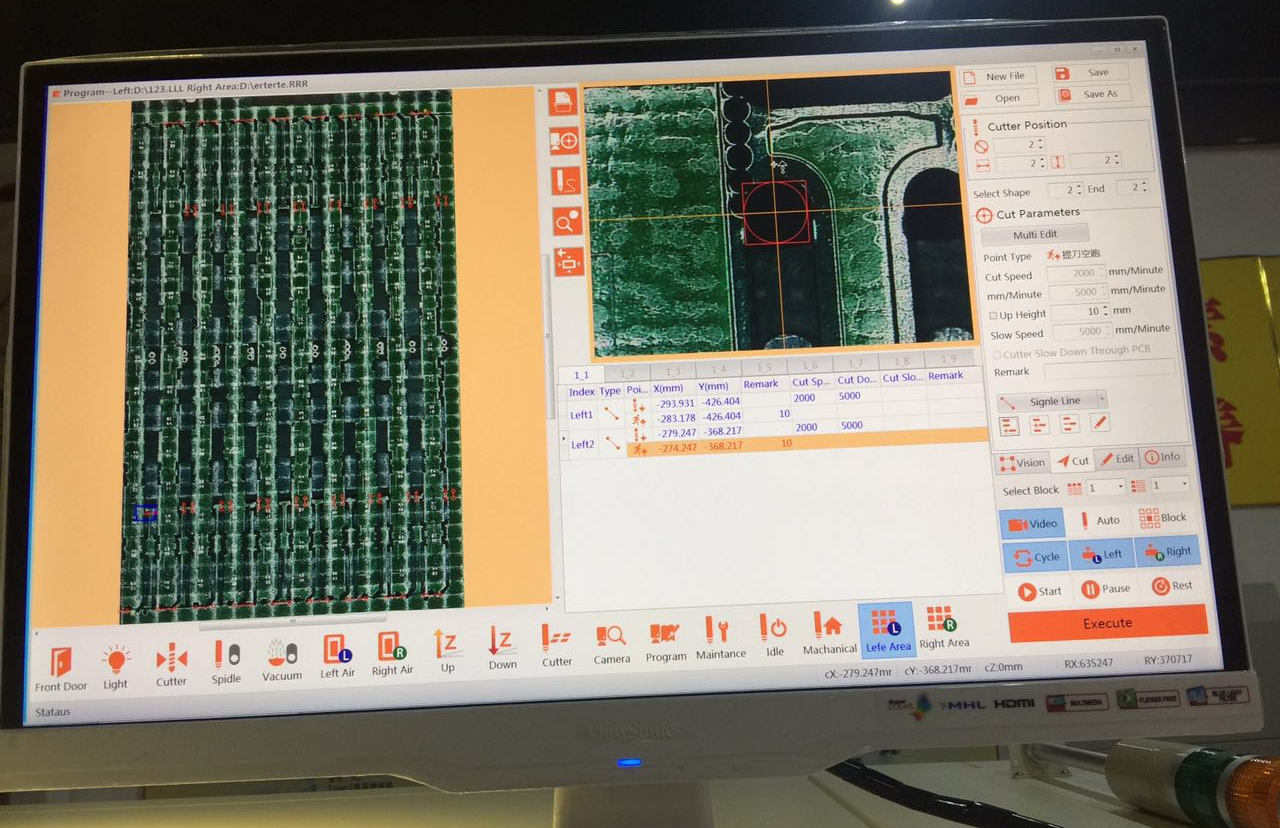

Industry-specific control equipment with flexible processing software, dedicated motion control card, and IPC control mode. Features 17-inch monitor, 300GB+ hard drive, and supports standard G-code, Gerber data, and CAD formats.
Quick Specifications
| Maximum Board Length | 610 × 500mm |
| Package Size | 1818mm × 2317mm × 1550mm |
| Thickness | 1mm |
| Power Supply | AC220V 50Hz/2.2KW; Three-phase 380V 50Hz/5.5KW |
| Working Air Pressure | 516m³/h |
| Weight | 3500kg |
| Scope of Application | All V-CUT SMD PCB FPC boards |
