On-line Circuit Board Cutting Machine with Real-Time Positioning & Dust-Free Cutting

Place of Origin : Guangdong, China

Brand Name : YUSH

MOQ : 1 set

Price : $18,000 / set

Weight : 3500 kg

Power : 10 kW

Voltage : 220V/110V

Cutting speed : 0-100mm/s

Repeat accuracy : ±0.01mm

Control method : Industrial IPC and PC

Drive mode : AC Fiber Optic Servo Motor

Cutting accuracy : ±0.05mm

Spindle speed : 100000 rpm

Host voltage : 220V 1ψ 50/60Hz

Air pressure : ≥4.5kg/cm²

Power consumption : 3KVA

Dust collector : 2HP

Dust collector voltage : 380V 3ψ

Dust collector size : L650×W400×H1350mm

Contact Now

On-line Circuit Board Cutting Machine with Real-Time Positioning & Dust-Free Cutting
Advanced PCB depaneling solution featuring automated loading, cutting, and unloading with precision vision alignment and dust collection system.
On-line Circuit Board Cutting Machine with Real-Time Positioning & Dust-Free Cutting
Technical Specifications
X, Y Cutting Speed 0 - 100mm/s
Machine Repeat Accuracy ± 0.01mm
Control Methods Industrial IPC and PC
Drive Mode AC Fiber Optic Servo Motor
Cutting Accuracy ± 0.05mm
Spindle Speed Max 100,000 RPM
Host Voltage 220V 1ψ 50/60HZ
Air Pressure Supply Above 4.5kg/cm²
Power Consumption 3KVA
Dust Collection Upper Dust Collection 2HP
Dust Collector Voltage 380V 3ψ
Dust Collector Dimensions L650 × W400 × H1350mm
On-line Circuit Board Cutting Machine with Real-Time Positioning & Dust-Free Cutting
Available Models
Workbench Model Specifications Work Size Machine Dimensions (W×D×H)
Double Tables YASTM-4C-IN-AS Standard Type 300 × 300mm 1680 × 1298 × 1700mm
Double Tables YASTM-4C-IN-AW Widened 500 × 450mm 1902 × 1373 × 1700mm
On-line Circuit Board Cutting Machine with Real-Time Positioning & Dust-Free Cutting
Key Features
  • In-line automatic PCB separator for automated loading, cutting, and unloading
  • Automatic width adjustment and PCB board reception with finished/waste identification

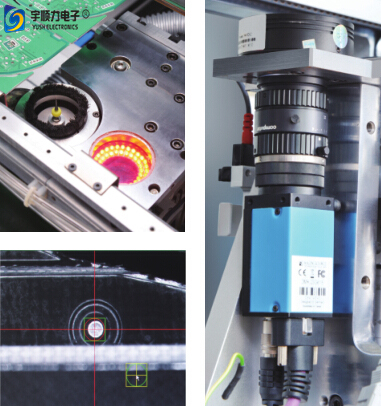

  • High-speed CCD with automatic vision alignment system for precision cutting
  • High-speed spindle cutting with minimal stress for any PCB form
  • Dual table motion for simultaneous PCB cutting and placement operations
On-line Circuit Board Cutting Machine with Real-Time Positioning & Dust-Free Cutting
Operational Advantages
  • Double slide placement device reduces cutting waiting times and increases production capacity
  • Eliminates artificial flap issues causing tin cracking and part damage
  • Avoids mechanical stress from blunt or fold operations
  • Suitable for finished plate arc and line cutting applications
  • Ideal for small piece final cutting including mobile phone base plates, PDA, and PC interface cards
On-line Circuit Board Cutting Machine with Real-Time Positioning & Dust-Free Cutting
System Configuration
Provides fine-tuning revision through diagrammatic machine interface with comprehensive cutting parameter settings.
On-line Circuit Board Cutting Machine with Real-Time Positioning & Dust-Free Cutting
Manufacturer Information
YUSH Electronic Technology Co., Ltd was founded in 2004 and is located in Jiangsu, China's world manufacturing city. The company specializes in professional PCB separator and depaneling electronic equipment machinery.
With advanced production equipment and an experienced development team (half with over 10 years in electronic equipment industry), YUSH has become one of China's largest PCB separator production bases.
Since 2004, the company has focused on product quality, safety, and innovation, developing various PCB separator types including manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router solutions.
