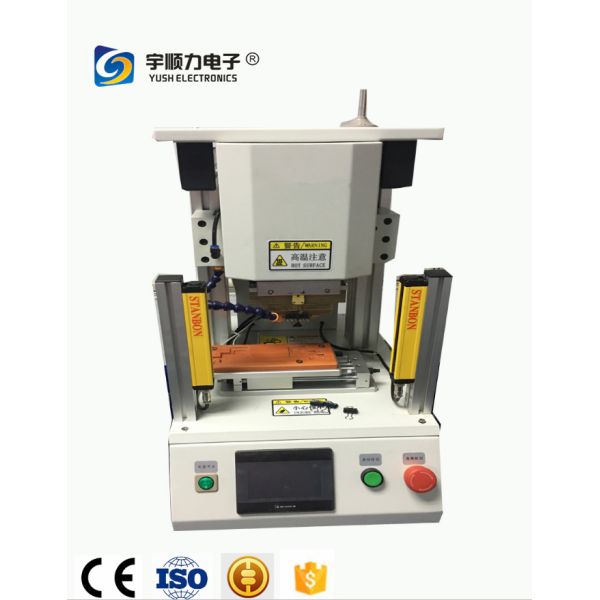

High Speed Hot Bar Soldering Machine Bonding PCB and Fpc Board

Name: High Speed Hot Bar Soldering Machine Bonding PCB and Fpc Board
Brand: YUSH
Price: 7 USD

Quality High Speed Hot Bar Soldering Machine Bonding PCB and Fpc Board for sale

Place of Origin : Guangdong, China

Brand Name : YUSH

MOQ : 1 set

Price : $7,000 / set

Weight : 110 kg

Power : 10 kW

Voltage : 220V/380V

Model : YSPC-1A

Working area : 200*260mm

Bonding force : 3,900N

Pitch capability : 0.25mm

Core components : PLC, Gearbox, Motor, Pump

Temperature control : Closed loop PID

Pressure control : Digital programmable

Cycle time : Extremely short

Thermode type : Floating

Alignment system : Micrometer/vacuum

Optional CCD : Frame, camera, lens

Controller type : Microprocessor based

Contact Now

High Speed Hot Bar Soldering Machine for PCB and FPC Board Bonding

Advanced hot bar soldering system designed for precision bonding of printed circuit boards and flexible printed circuits with exceptional speed and accuracy.

High Speed Hot Bar Soldering Machine Bonding PCB and Fpc Board

Technical Details

Microprocessor-based controller provides precise and consistent temperature control
Unique pulsed heat thermos offers uniform temperature distribution with fast heating and cool-down
Flexible programmable profiles for targeted idle, preheat and reflow heating
Floating thermos and digital pressure switch ensure optimal pressure distribution across joints
CCD camera system with magnification lens available for fine-pitch positioning

Key Features

Extremely short cycle time with rotary table design
Product loading and unloading during heat sealing process
High quality heat seal application up to 0.25mm pitch
Pneumatic bonding head provides up to 3,900N force
Digital programmable pressure control with LCD display
Closed loop PID temperature control with visible LED display
Bonding cycle triggered by real-time pressure sensor
Floating Thermode ensures consistent pressure and heat transfer
Precision product fixtures with micrometer alignment and vacuum component fixation
Optional CCD alignment module for fine pitch applications
Full microprocessor logic control

Customer Support Advantages

Engineer overseas training for customers
Prompt technical support services
Rapid complaint handling with 30-minute response time
Reliable manufacturing with 15+ experts each having over six years of experience

Technical Specifications

Establishment Year	1999
Lead Time	5 days
Working Area	200 × 260mm
Fixture	1 set

Product Tags:

High speed hot bar soldering machine

PCB bonding soldering machine

FPC board soldering machine

High Speed Hot Bar Soldering Machine Bonding PCB and Fpc Board Images
