Precision ± 0.05mm PCB Depaneling Router Automatic Pcb Router Machine

Name: Precision 005mm PCB Depaneling Router Automatic Pcb Router Machine
Brand: YUSH
Price: 28000 USD

Quality Precision ± 0.05mm PCB Depaneling Router Automatic Pcb Router Machine for sale

Brand Name : YUSH

Model Number : YSVC-650

Certification : CE Mark

Place of Origin : jiangsu

MOQ : 1set/sets

Price : 28000-30000 USA

Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram, L/C

Supply Ability : 100set/SETS

Delivery Time : 3-7days

Packaging Details : Standard packaging

Maximum Axis Travel (X,Y,Z) : 400mm*650mm*50mm

Routing Range : 320mm*320mm

Panel Thickness : 3mm

Manipulator Repeatability : 0.001mm

Manipulator Motor : Panasonic MINAS A5 series

Contact Now

Precision ± 0.05mm CNC Pcb Router Automatic Pcb Router Machine

feature:

1. Online PCB Router Cutting precision ± 0.05mm,Online Automatic PCB Router Machine

2. High efficiency:It merely needs a few minutes to make a piece of PCB.

3. Safety :Enclosed Work Area ;Door Interlock Sensors ;Emergency Stop Button

Precision ± 0.05mm PCB Depaneling Router Automatic Pcb Router Machine

specifications

I. Hardware
System models / types	Windows XP Professional
Overall
FootPrint (LxWxH)	800mm850mm1700mm
Weight (Approximate)	150KG
Adjustable machine footings (for height)	60~110mm
Manipulator
Manipulator Motor	Panasonic MINAS A5 series
Manipulator Repeatability	0.001mm
Axis configuration
Maximum Axis Travel (X,Y,Z)	400mm650mm50mm
Work station
Board Positioning	Fixture positioning, thimble universal positioning, vision correction
Loading/Unloading	manual
Routing Range	320mm*320mm
Panel Thickness	3mm
Fixturing
Rigid Fixturing	Universal thimble & anti-static fixture
Top Clamp	Using hole positioning
Spindle Motor
Power	100W
Max. speed	60000rpm/min
Cooling	Natural cooling and air-cooled
Router bit size	3mm*3mm
Tool change	Use Special wrench
Routing capability
Max routing speed	100mm/s
Repeatability	0.02mm
Vacuum System
Power	0.75KW220V Single-phase motor
Filtration	Vertical and horizontal
Utilities
Power	1.5KW AC220V
Air supply	4~5KG/cm2

Precision ± 0.05mm PCB Depaneling Router Automatic Pcb Router Machine

Our advantage:

1. we can do the designs according to the customers' requirement

2. we can offer you the high quality & reasonable price

3. we can offer your a good after-sell service .

4. we have strong professinal design team

5. promptly delivery. small order is welcome

Precision ± 0.05mm PCB Depaneling Router Automatic Pcb Router Machine

Product Tags:

pcb routing machine

pcb separator machine

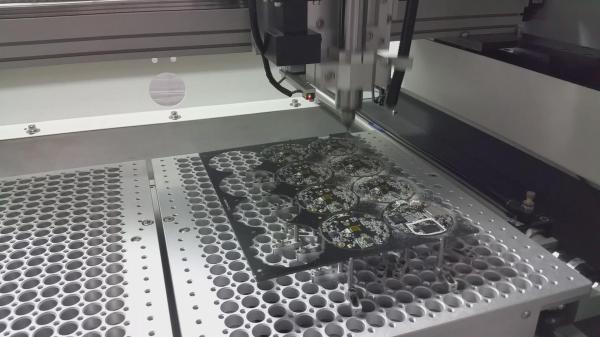

Precision ± 0.05mm PCB Depaneling Router Automatic Pcb Router Machine Images
